This miter saw station is perfect for the small shop and boasts tons of ample storage. It features four lower drawers in each cabinet and an additional drawer in the top platforms.


These 22-page, step-by-step plans take you through the entire build from start to finish with detailed renderings of the whole process.


Imperial plans only (no metric, sorry).

Details

About the Plans

The cabinets use traditional frame and ship lap carcass construction with the ability to build with modern joinery methods like dowels or dominos which makes for a strong yet straightforward build.

The top is 26" x 92" and 36" tall, but can be made wider by placing additional base cabinets side by side.

This is an intermediate level project, but if you’ve built a table before, this would be a great project to push your woodworking skills to the next level.

The plans are a .pdf file format. After purchasing, an email will be sent (separate from the order confirmation email), with a link to access the plans. You have five attempts to access and download the plans to the local storage on your device. If you don't see the email after an hour, first check your spam folder, then fill out the form on the Contact page for customer assistance.

Tool Requirements

• Miter Saw
• Table Saw

Supplies

• 2x4, 1x4, 1x6 softwood, such as pine
• Wood Glue
• 22" Drawer Slides x8
• 16" Drawer Slides x2
• 10 Drawer Pulls

You Might Also Like:

The Evergreen Workbench

A Woodworking Project Video Course

Ready to build a sturdy, versatile, and affordable workbench? This beginner-friendly video course guides you through the process of constructing this affordable workbench. Learn essential woodworking techniques like half-lap joinery while building a bench that will last a lifetime.

Customer Reviews

Based on 10 reviews
90%
(9)
0%
(0)
0%
(0)
10%
(1)
0%
(0)
M
Mark Mease
A blended miter saw station

I, too, have a small shop. So small that I had to use up some plywood before buying any new wood. But I liked the design you showed, so I bought Lincoln St Woodworks plan as well as yours and made a station with your measurements and sliding rails, but with my plywood. Now I have room for that fancy router bit you used!

K
Karl B

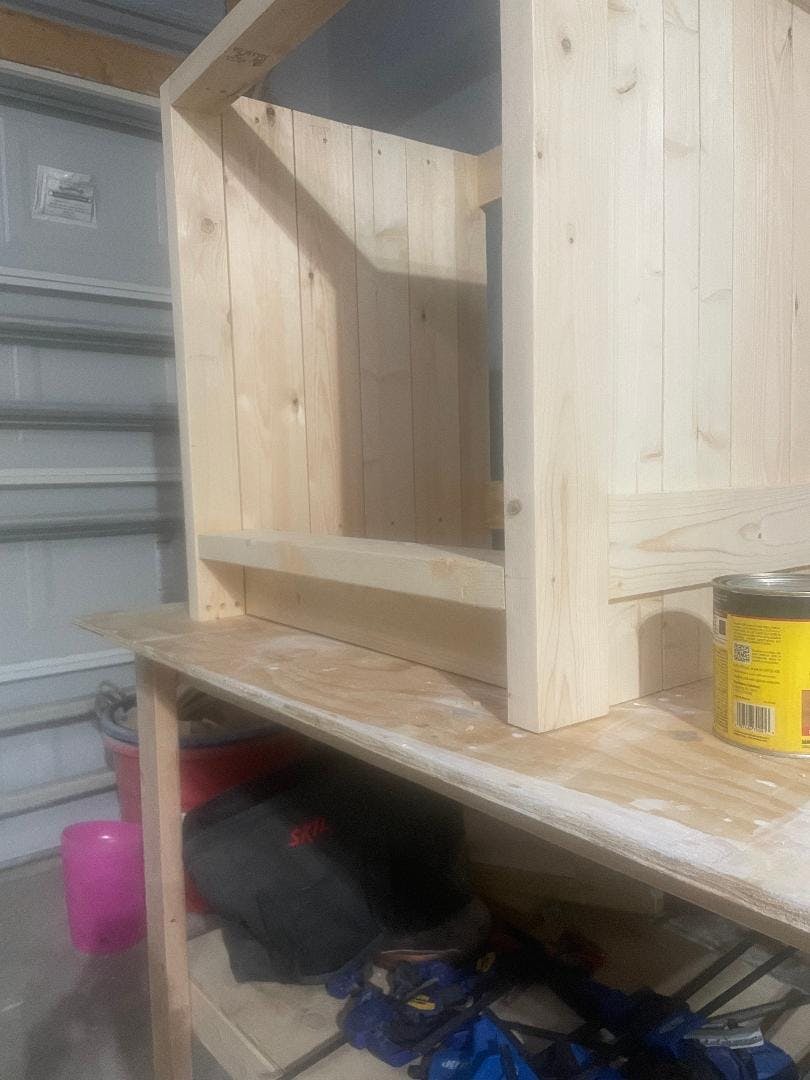

Great Plans for the Build
